Factory Modern Luxury Easy Assembly Prefabricated Steel Villa
Galvanized Steel Prefab Modular Homes
Cannes House
2 Living
3 bedrooms
3 bathrooms
1 Kitchen
2Garage
247.64sqm

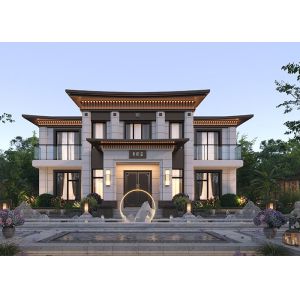

The Cannes House is a beautifully designed two-storey luxury villa
that blends European elegance with modern functionality. With a
total area of 247 square metres, this spacious residence is
designed with comfort and sophistication in mind. With an area of
127 square metres on the first floor and 120 square metres on the
second floor, it offers a balanced and practical living space for
the family.

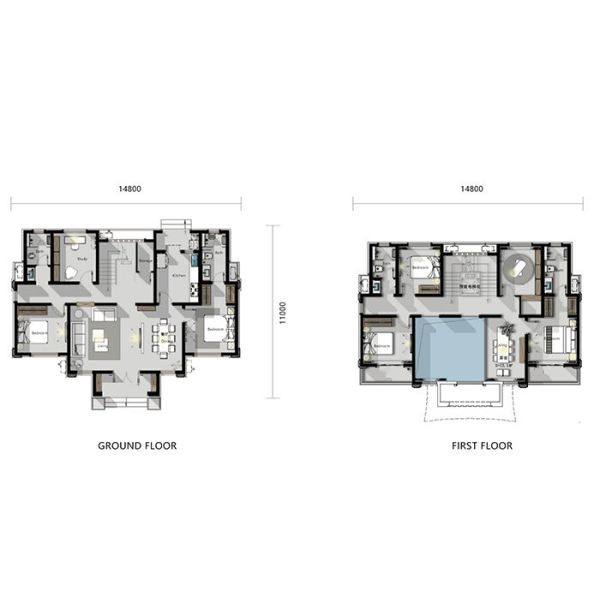

Floor plan:
Functional Layout:
This layout seems well-suited for high-density urban developments
where maximizing living space is a priority. The absence of a
built-in garage allows for a more spacious interior layout, and the
five-bedroom design makes it attractive for large families or
shared living arrangements.
Product parameters:
| Name: | Cannes House |
| Size: | 14800×11000mm |
| Ground floor area: | 103sqm |
| First Floor Area: | 127qm |
| Total Area: | 120sqm |
| Model: | DPBL-25-01 |
Specifications
1. Structure: 0.75mm/0.95mm/1.15mm light gauge steel
2. Foundation: you need to prepare by yourself. Concrete
foundation, or other foundation
3. Roof: Colorbond sheet, asphalt shingle, ceramic tile,
stone-metal sheet
4. External wall: EPS sandwich panel, ALC panel, metal PU sandwich
panel, pre-painted fiber cement board, CFC board, WPC board
5. Internal wall: Gypsum board, MGO board, integrated wall panel,
etc.
6. Ceiling: Gypsum board, MGO board, integrated wall panel, etc.
7. Underneath for floor: CFC sheet, OSB board
8. Insulation: R2.5/3.5/4/5 glass wool, rock wool
9. Flooring: ceramic tile, laminated flooring, PVC flooring, wooden
flooring
10: Window: double/single glass Alu. window
11: Door: normal security door, plywood door, alu. door, WPC door,
wooden door
12: Electrical and plumbing system
14: Kitchen: wall cabinet, top cabinet, sink, faucet, benchtop
15: Bathroom: washbasin, toilet, shower
Premium Materials and Customizable Options:
DEEPBLUE SMARTHOUSE ensures durability and elegance by using
top-grade materials:
Steel Structure: Light steel framing for superior strength,
durability, and resistance to environmental challenges.
Roofing: Durable options like Colorbond roofing or alternatives to
match the design.
Walls: External walls made of CFC sheets or ALC panels; interior
walls finished with gypsum boards.
Flooring: Options include CFC floorboards, porcelain tiles, or MDF
flooring to suit various preferences.
Windows and Doors: Aluminum double-glazed windows for energy
efficiency; MDF or wooden doors for added security.
Kitchen: Modern cabinets, sleek benchtops, sinks, and faucets.
Bathrooms: Premium toilets, showers, and vanities for a luxurious
touch.
Design code:
(1)AISI S100 North American Specification for the Design of Cold
Formed Steel Structural Members published by the American Iron and
Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel
structures jointly published by Standards Australia and Standards
New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code
of practice for design of cold formed thin gauge sections published
by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part
1.3: General rules, Supplementary rules for cold-formed thin gauge
members.
Company Information
Deepblue Smarthouse was founded in 2009, a high-tech enterprise
which integrated the ability of design, production, sales,
transportation, installation and other services as a whole. We
always committed to providing every family with a comfortable, safe
and affordable home, and also can provide one-stop service for
customers in this field. At present, we have completed many
overseas real estate projects, large resort projects and so on. Our
products have been exported to more than 60 countries and NGO. With
59 patents of invention and utility models, we have built more than
5,000 houses and won many awards in design and architecture
The DeepBlue Smarthouse world is one with advanced production equipment, managed by
outstanding professionals, within a sound training environment.
Together with our excellent corporate atmosphere we provide you
with first-for our customers, that's our commitment to you.
Packaging & Shipping
Well packed export quality package ,shipped by 40hq.
