USA Standard Prefab Hosue Single Family Home Luxury 2 Story Light
Steel Home Steel Kits
Austria House
3 bedrooms 3 bathroom
2 Living
2 Garage
256.25m²
Yep! This 256.25㎡ beauty packs in 3 bedrooms, 2 living rooms, a
sleek kitchen, 3 bathrooms, and even 2 garages—all wrapped up in a
modern, functional design. And guess what? It goes up way faster
than traditional builds.

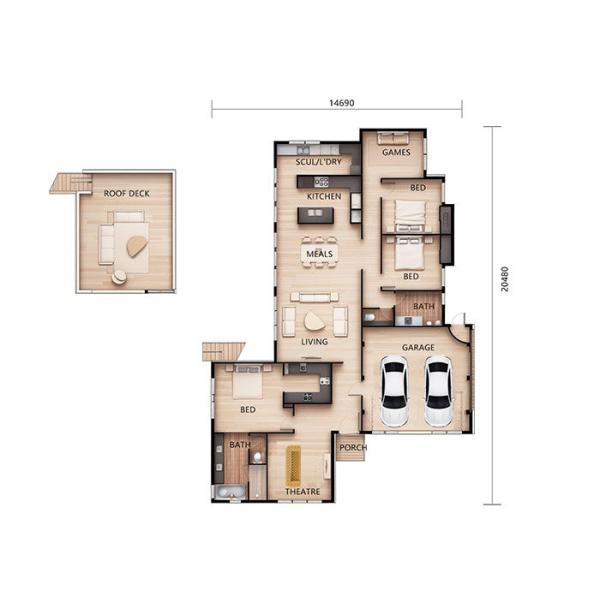

Floorplan:
The Austria House is thoughtfully designed to provide both
spaciousness and functionality across a total area of 256.25㎡. Its
well-balanced layout includes:
3 Bedrooms: Offering ample private space for family members or
guests, each bedroom is designed for comfort and natural light.
2 Living Rooms: Featuring a formal living area and a secondary
lounge or family room — ideal for entertaining or relaxing in
separate zones.
1 Kitchen: A modern and efficient kitchen layout that connects
seamlessly to the dining area, perfect for both everyday meals and
hosting gatherings.
3 Bathrooms: Including en-suite and shared bathrooms, designed with
convenience and privacy in mind for all residents.
2 Garages: Secure, integrated parking space for two vehicles, with
additional storage options.
Product parameters:
| Name: | Austria House
|
| Size: | 14690×20480mm |
| Area: | 256.25qm |
| Model: | DPBL-25-35 |
Applications:
Hotel, House, Office, etc.
Product Description:
DeepBlue earthquake proof prefabricated bungalow is based on a
light gauge steel frame system with high-performance finishing
materials. The whole house can be assembled within a couple of
hours by 4workers.
the materials are the following:
1. Main structure: 89mm light gauge steel framing system based on
AS/NZS 4600 standard.
the structure can be design to resist 50m/s wind and 9degree
earthquake.
2. Roof structure: 89mm light gauge steel truss system.
3. Chassis: 89mm light gauge steel flooring chassis
4. flooring: 18mm fiber cement board with vapor barrier and bamboo
flooring or wooden flooring, Pvc carpet, etc.
5.Wall cladding: 16mm PU insulated steel sandwich panel with
beautiful decoration
6. interior lining: 9m fiber cement board, water-proof,
termite-proof, security and healthy
7. ceiling: 8mm Pvc ceiling panel
8. insulation: 89mm glass wool insulation with good soundproof
performance.
9.windows: PVC sliding windows
10.exterior door: high-quality aluminum sliding windows
11.interior door: painted wood door
12.bathroom: shower, washbasin, toilet included
13. roofing: corrugated steel roofing with the gutter system
14. veranda deck: W.P.C veranda flooring.
Specifications:
At DEEPBLUE SMARTHOUSE, we don’t just build houses—we engineer 'em
smart. Here’s what we’re throwing into this Austria House (or your
future Aussie villa / U.S. single-family home):
✔ Super-precise light steel frame – Stronger than wood, no
termites, no warping. "Try that, Mother Nature."
✔ Insulated wall panels – Keeps the heat out (or in) so your AC
bill doesn’t give you a heart attack.
✔ Stylish, tough flooring – Because nobody wants creaky floors
after 6 months.
✔ Energy-saving windows & doors – Less drafts, more comfort.
"Bye-bye, winter chills."
✔ Full bathroom kits – Sanitary ware, fittings, the works. "Just
add towels (and maybe a rubber duck).
Why Choose Light Gauge Steel Structure?
1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of
the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior
wall
8)Insect prevention: Free from the damages by insects, such as
white ants
9)Ventilation: a combination of natural ventilation or air supply
keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only
and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.
Design code:
(1)AISI S100 North American Specification for the Design of
Cold-Formed Steel Structural Members published by the American Iron
and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel
structures jointly published by Standards Australia and Standards
New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code
of practice for the design of cold-formed thin gauge sections
published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part
1.3: General rules, Supplementary rules for cold-formed thin gauge
members.
Resistant to various weather conditions, due to its light gauge
steel framing system, DeepBlue Mobile Homes can resist winds up to
50m/s, 50cm snow loads as well withstand earthquakes due to its
special steel structure technology.
The DeepBlue Mobile Houses manufacturing technology is truly a
mature product characterized by flexibility and innovative design
and solution.
Based on our patented foldable technology, transportation and
erection can be done in a very simple and convenient way in order
to save lots of time, energy, and unnecessary expenses.
Your first choice, Deepblue Prefabrica
