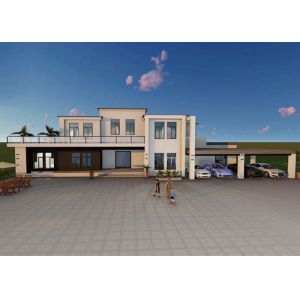

Garden Terrace Green Prefab Homes Double Deck Detached Prefab Light Steel Frame House

Quick Detail:

Description:
Main structure: Light Gauge Steel
Wall material: ALC panel/fiber cement cladding+MGO board/gypsum board
Insulation material: Insulation material
Ceiling material: MGO board/gypsum board
Floor/foundation material: laminate flooring/wooden/PVC carpet
Door: steel security door/WPC or plywood door
Window: aluminum alloy/PVC
Roofing: EPS sandwich panel/steel roofing/asphalt shingle
Other fittings: toilet, washbasin, shower, kitchen, etc.
Lifetime: 100 years for structure

Applications:
House, Office, Villa, etc.
Specifications
Product Description
DeepBlue steel structural prefab villa is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers. the materials are the following:

1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard. the structure can be design to resist 50m/s wind and 9degree earthquake.
2. Roof structure: 89mm light gauge steel truss system.
3. Chassis: 89mm light gauge steel flooring chassis 4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, PVC carpet, etc. 5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration 6. interior lining: 9m fiber cement board,water-proof,termite-proof, security and healthy
7. ceiling: 8mm PVC ceiling panel
8. insulation: 89mm glass wool insulation with good soundproof performance.
9.windows: PVC sliding windows
10.exterior door: high-quality aluminum sliding windows 11.interior door: painted wood door 12.bathroom: shower, washbasin, toilet included 13. roofing: corrugated steel roofing with gutter system 14. veranda deck: W.P.C veranda flooring.
ISO standard light gauge steel for the main structure.fireproof, heat insulation, wind, and earthquake resistance.green, energy saving. also economically.

Why Choose Light Gauge Steel Structure?
1)Lifetime for structure: 100 years.[0.75~1.2mm , Z275galvanized steel profile, strength:550Mpa ]

2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire resistance.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.

Company Introduction:
Since Yinhua Cheney founded the company in 2009, we have been proud to provide affordable manufactured and modular homes, apartments, commercial buildings, military barracks, and college dormitories to people all across the world. From humble beginnings, we have since built more than 5000 homes and won multiple awards for both design and construction. Today we build, sell, finance, lease, and ensure our building from China to the world
(1) With over 10 years of experience in the Prefab housing Business;
(2)Exporting prefab houses to more than 60 countries and NGO, including USA, Australia, France, Africa, South America, United Nation;
(3)Owner of 59 patents;
(4)including our revolutionary Unique folding design patent;
(5)Supply both Luxury house and social housing;
(6)Excellent understanding in Developer/Builder relationship requirements
(7)Expert at low-cost housing solutions for government

Since David Chen first opened our doors in 2009, we have been proud to provide  light gauge steel framing system,

prefab homes,light steel house, luxury villa, tiny house, townhouse, prefab house, prefab apartments, prefab commercial

buildings, military barracks, prefabricated dwelling and college dormitories to people all across the World.

We have a new large processing center and modern production workshop. This is to

ensurethat the accuracy of the production equipment, is in strict accordance with all

technical specificvations and maintains the highest quality control throughout production.

Our company operates by world class design, unmatched production systems, high

capacityassembly, and volume to completion capabilities. We have exported to more

than 60 countries to customers just like you, from all over the world。

We have exported to more than 60 countries to customers just like you, from all over the

world, who have watched their dreams come alive through our cnc machine, assisted by

 our experienced steel structure engineer and professional and innovative design team.
