Luxury Prefabricated Villa Home | Light Steel Double-Deck Design
With Thermal Insulation Material
Quick Detail:
| Name | Prefab villa | Application | villa,house,etc |
| Color | customized | Feature | 1.quickly to assemble on-site; 2.excellent heat insulation 3.Earthquake, cyclone and fireproof;
4.Green, Energy saving and recyclable |
| Material | light steel frame and other parts material | Certificate | CE,ISO,SAA,ETC |
Description:
Main structure: Light Gauge Steel
Wall material: ALC panel/fiber cement cladding+MGO board/gypsum
board
Insulation material: Insulation material
Ceiling material: MGO board/gypsum board
Floor/foundation material: laminate flooring/wooden/PVC carpet
Door: steel security door/WPC or plywood door
Window: aluminum alloy/PVC
Roofing: EPS sandwich panel/steel roofing/asphalt shingle
Other fittings: toilet, washbasin, shower, kitchen, etc.
Lifetime: 100 years for structure
Applications:
House, Office, Villa, etc.
Product Description

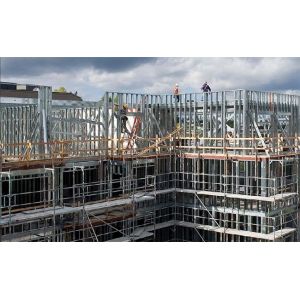

DeepBlue steel structural prefab villa is based on a light gauge
steel frame system with high-performance finishing materials. The
whole house can be assembled within a couple of hours by 4workers.
the materials are the following:
1. Main structure: 89mm light gauge steel framing system based on
AS/NZS 4600 standard. the structure can be design to resist 50m/s
wind and 9degree earthquake.
2. Roof structure: 89mm light gauge steel truss system.
3. Chassis: 89mm light gauge steel flooring chassis
4. flooring: 18mm fiber cement board with vapor barrier and bamboo
flooring or wooden flooring, PVC carpet, etc.
5.Wall cladding: 16mm PU insulated steel sandwich panel with
beautiful decoration
6. interior lining: 9mm fiber cement
board,water-proof,termite-proof, security and healthy
7. ceiling: 8mm PVC ceiling panel
8. insulation: 89mm glass wool insulation with good soundproof
performance.
9.windows: PVC sliding windows
10.exterior door: high-quality aluminum sliding windows
11.interior door: painted wood door
12.bathroom: shower, washbasin, toilet included
13. roofing: corrugated steel roofing with the gutter system
14. veranda deck: W.P.C veranda flooring.
ISO standard light gauge steel for the main structure. fireproof, heat
insulation, wind, and earthquake resistance.green, energy saving.
also economically.
Company information
Deepblue Smarthouse is a high-tech company founded in 2009. We have
the ability to integrate design, production, sales, transportation,
installation, and other services. We are always committed to
providing a comfortable, safe, and affordable home for every
family, and we can also provide customers in this field with a
Station service. At present, we have completed many overseas real
estate projects, large-scale resort projects, etc. Our products
have been exported to more than 60 countries and NGOs. We have 59
inventions and utility model patents, have built more than 5,000
houses and won many awards in design and construction
Why Choose Our Light Gauge Steel Structure?
1)Lifetime for structure: 100 years.[0.75~1.2mm , Z275 galvanized
steel profile, strength:550Mpa ]
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire resistance.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of
the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior
wall
8)Insect prevention: Free from the damages by insects, such as
white ants
9)Ventilation: a combination of natural ventilation or air supply
keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only
and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.
