Fiber Cement Board Luxury Prefab Houses Ultra Modern Prefab Homes Prefab Home Kits

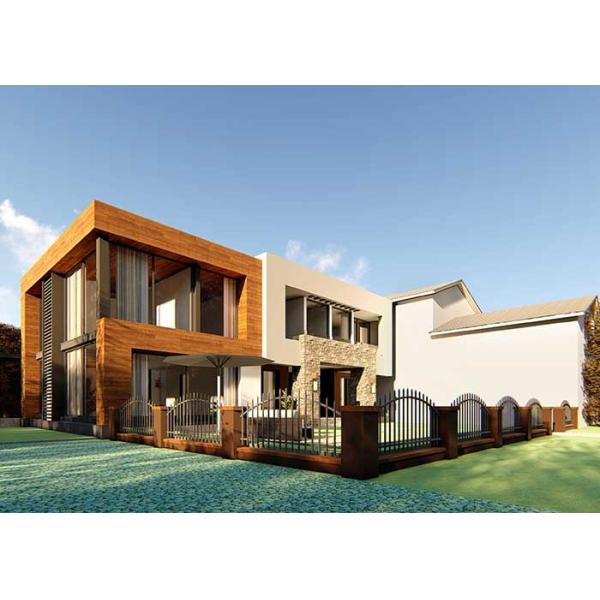

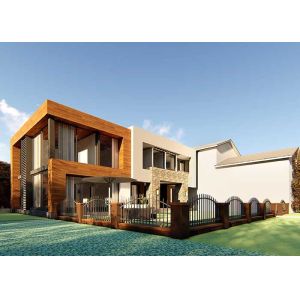

Vienna Villa

7 bedrooms 6 bathrooms 1kichen 1 living room 450m²

In this project, two villas are combined into a large villa to form two homes. The owners of the houses are neighbors of the two families who have good relations. The villas are scattered in different directions, with the two doors opening in different directions. Although the villas are connected together, they have their own space without being

Quick Detail:

Product Description

DeepBlue steel structural prefab villa is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers. the materials are the following:

1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard. the structure can be design to resist 50m/s wind and a 9degree earthquake.

2. Roof structure: 89mm light gauge steel truss system.

3. Chassis: 89mm light gauge steel flooring chassis

4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, PVC carpet, etc.

5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration

6. interior lining: 9m fiber cement board,water-proof,termite-proof, security and healthy

7. ceiling: 8mm PVC ceiling panel

8. insulation: 89mm glass wool insulation with good soundproof performance.

9. windows: PVC sliding windows

10. exterior door: high-quality aluminum sliding windows 11.interior door: painted wood door 12.bathroom: shower, washbasin, toilet included 13. roofing: corrugated steel roofing with gutter system 14. veranda deck: W.P.C veranda flooring.

Specifications

Applications: House, Villa, hotel, rumpus room, etc

ISO standard: light gauge steel for the main structure.fireproof, heat insulation, wind, and earthquake resistance.green, energy saving. also economically.

Why Choose Light Gauge Steel Structure?

1)The lifetime of structure: 100 years.[0.75~1.2mm, Z275galvanized steel profile, strength:550Mpa ]

2)Earthquake resistance: min more than 8 grades.

3)Wind resistance:max 60m/s.

4)Fire resistance: all the materials that are used can be fire resistant.

5)Snow resistance: max 2.9KN/m² as required.

6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.

7)High acoustic insulation:60db of exterior wall 40db of the interior wall.

8)Insect prevention: Free from the damages by insects, such as white ants.

9)Ventilation: a combination of natural ventilation or air supply to keep the indoor air fresh and clean.

10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.

11)Installation: the average is one worker one day install one SQM.

12)Installation guide: dispatch engineer to guide on site.

Company Introduction:

Since Yinhua Cheney founded the company in 2009, we have been proud to provide affordable manufactured and modular homes, apartments, commercial buildings, military barracks, and college dormitories to people all across the world. From humble beginnings, we have since built more than 5000 homes and won multiple awards for both design and construction. Today we build, sell, finance, lease, and ensure our building from China to the world.
(1) With over 10 years of experience in the Prefab housing Business;
(2)Owner of 59 patents;

(3)Exporting prefab houses to more than 60 countries and NGO, including USA, Australia, France, Africa, South America, United Nation;
(4)including our revolutionary Unique folding design patent;
(5)Supply both Luxury house and social housing;
(6)Excellent understanding in Developer/Builder relationship requirements;
(7)Expert at low-cost housing solutions for government;

Design code:

(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.

(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.

(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.

(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
